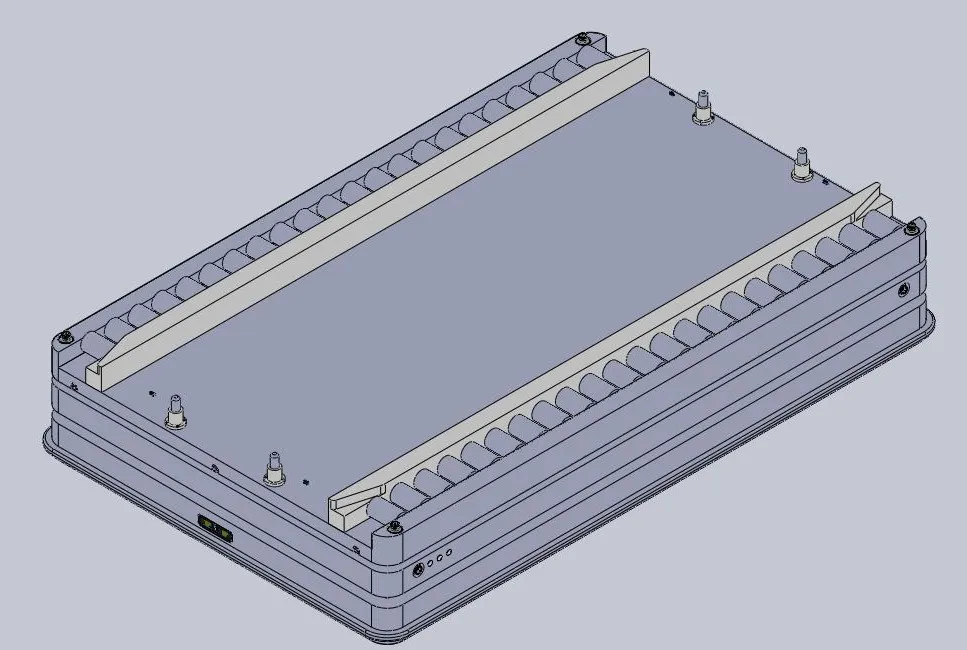

Highly Stable Heavy Duty Automated Moving Agv Roller

Operating Speed(Full Load) : 0.6 M/S

Trademark : Wellwit

Battery Life : ≥1500 Cycles

Docking Height : 610 mm (Standard)

Application : Loading, Warehouse, Logistic, 3D, Manufacture

Navigation : Lidar Slam

Model NO. : WR5000DS

Running Mode : Omnidirectional Motion

Payload : 5000 Kg

Charging Way : Automatic and Manual Charging

After-sales Service : One Year

Condition : New

Origin : Shenzhen

Battery Endurance : ≥6 H

Emergency Stop Switch : Support, Four in Total

MOQ : 1 Piece

Battery Type : Lithium Iron Phosphate Battery

Specification : 3500*2200*650 mm (Customizable)

Communication Mode : WiFi

Certification : ISO

Charging Time : <2.5 H

Warranty : One Year

Contact Now

Highly Stable Heavy Duty Automated Moving Agv Roller

Basic Specification	Technical parameters	Parameter Description
	Model	WR5000DS
	Mass	<5000 kg
	Payload	5000 kg
	Docking height	610 mm (Standard)
	Dimension (L * w * h)	35002200650 mm (Customizable)
	Navigation	LiDAR SLAM
Operating Performance	Motion mode	Forward/ backward/ rotation/ omnidirectional motion
	Driving mode	Double steering wheel drive
	Operating speed(No load)	0.8 m/s
	Operating speed(Full load)	0.6 m/s
	Positioning accuracy	±10 mm
	Visual camera	Second positioning: ±5 mm
Battery Performance	Battery type	Lithium iron phosphate battery DC48V
	Battery capacity	60 Ah
	Battery life	≥1500 cycles
	Endurance	≥6 h
	Charging time	≤2.5 h
	Charging way	Automatic/ manual charging
Safety Protection	Obstacle avoidance way	Lidar obstacle avoidance + contact anti-collision strip
	Emergency stop switch	Support, four in total.
	Communication mode	WiFi
	Audible and visual alarm	Support
	Debug interface	Open interface
	Environmental requirements	Indoor, Temperature: 0ºC ~ 50ºC(AGV can be used under the temperature), Relative Humidity: 5%-95% (no condensation).)

Shenzhen WellWit Robotics Co., Ltd was established in Shenzhen in March 2015, our company focuses on research and development of mobile robot. The R&D team consists of members who experienced in field of robot, embedded hardware, software, algorithms, artificial intelligence, etc.
Currently, products for sale including moving robot, sorting robot, Auto-forklift, etc. Navigation method we provide including QR code navigation, LiDAR SLAM navigation, Visual SLAM Navigation, RTK navigation.
We focus on providing custom logistic robots for the integrators who focus on Intelligent Logistics and Intelligent Factory, and provide AGV&AMR with ODM/OEM service for global clients.
