300kg Capacity ODM Agv Jacking Agv for Warehouse Optional Navigation

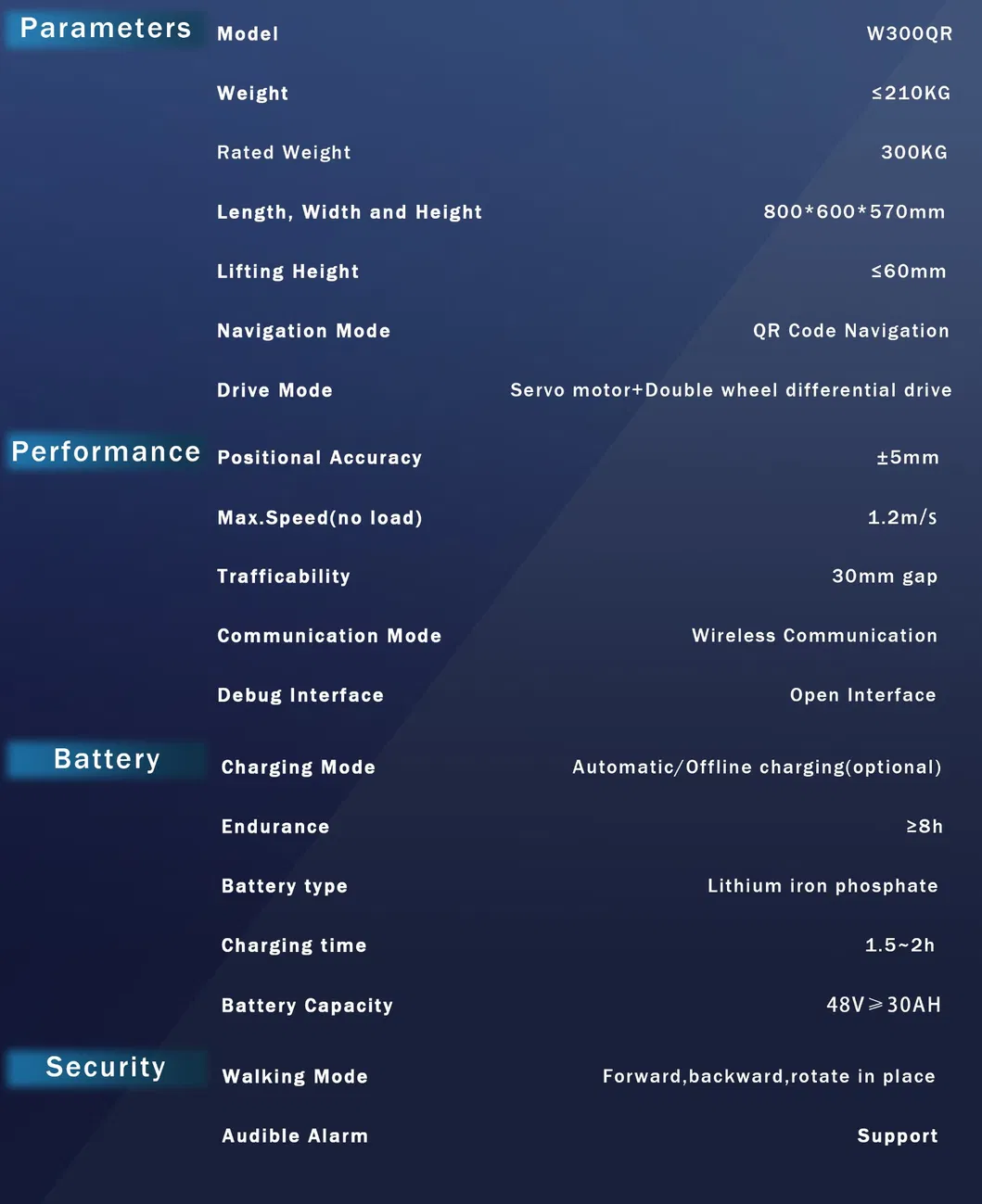

Payload : 300kg

Charging Mode : Automatic/ Offline Charging(Optional)

Positioning Accuracy : ±5mm

Battery Endurance : ≥8h

Condition : New

Origin : Shenzhen

Transport Package : Woolden Boxes/Cardboard Box

Warranty : One Year

After-sales Service : One Year

Navigation : Lidar Slam/Qr Code(Optional)

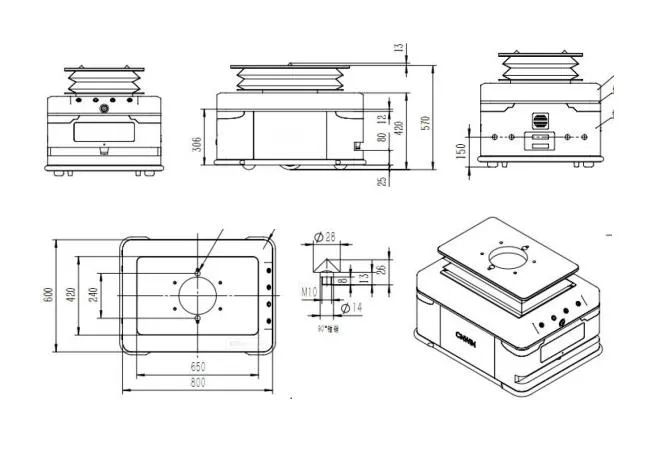

Specification : 800*600*570mm

Model NO. : W300QR

MOQ : 1 Unit

Jacking Height : ≤60mm

Certification : ISO

Obstacle Avoidance : Laser Obstalce Sensor/Mechanical Bumper Strip

Trademark : Wellwit

Price : US $13,000 / Unit

Battery Type : Lithium Iron Phosphate Battery

Charging Time : 1.5~2h

Contact Now

Notes:

1. Using QR code navigation, laying two-dimensional code on the ground, combining with the inertial navigation system for positioning and correction, can reach accurate positioning of ± 10 mm.
2. The load weight can reach 500kg, and most of the goods can be transported by jacking, rotating.
3. The equipment adopts the modular design of the whole machine, which makes the assembly and maintenance more convenient.
4. The battery can last for ≥ 8 hours with full load, and the robot can automatically charge with low power (set the low power value according to the customer's requirements).
5. Cluster scheduling, in the robot control system, can view the working status, battery energy, location and other information of all robots at the same time, and schedule all devices through the system.
6. Equipped with lidar safety barrier avoidance, front contact anti-collision bar, left and right emergency stop buttons, multiple safety protection to protect equipment and cargo safety.
7. Path planning in system, realize unmanned operation, staff only need to give instructions through the control terminal.

300kg Capacity ODM Agv Jacking Agv for Warehouse Optional Navigation

Shenzhen WellWit Robotics Co., Ltd was established in Shenzhen in March 2015, our company focuses on research and development of mobile robot. The R&D team consists of members who experienced in field of robot, embedded hardware, software, algorithms, artificial intelligence, etc.
Currently, products for sale including moving robot, sorting robot, Auto-forklift, etc. Navigation method we provide including QR code navigation, LiDAR SLAM navigation, Visual SLAM Navigation, RTK navigation.
We focus on providing custom logistic robots for the integrators who focus on Intelligent Logistics and Intelligent Factory, and provide AGV&AMR with ODM/OEM service for global clients.
