1. Mounting holes for jacking assembly and top pallet threaded hole dimension diagram

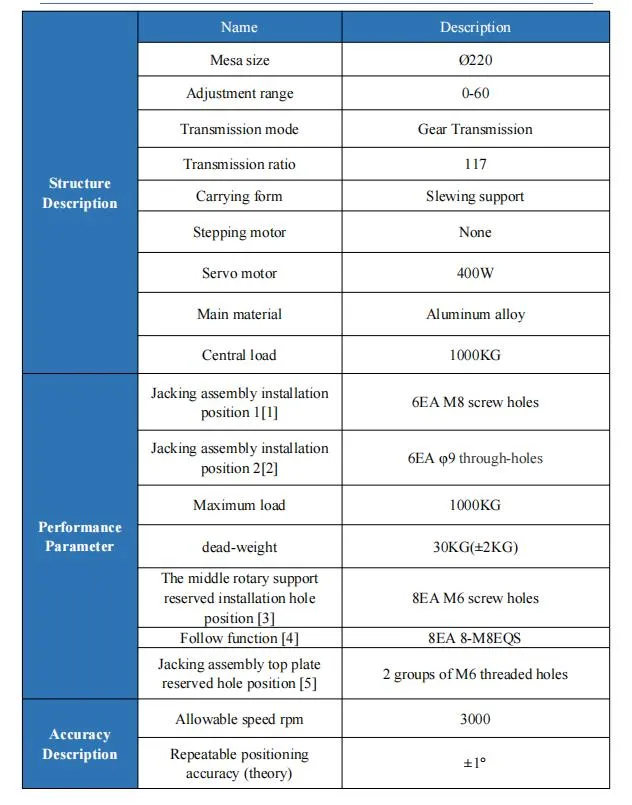

2. Specification
Note:
[1]. Installation of bolts from the bottom up.
[2]. The bolt is not convenient to install from the bottom up.

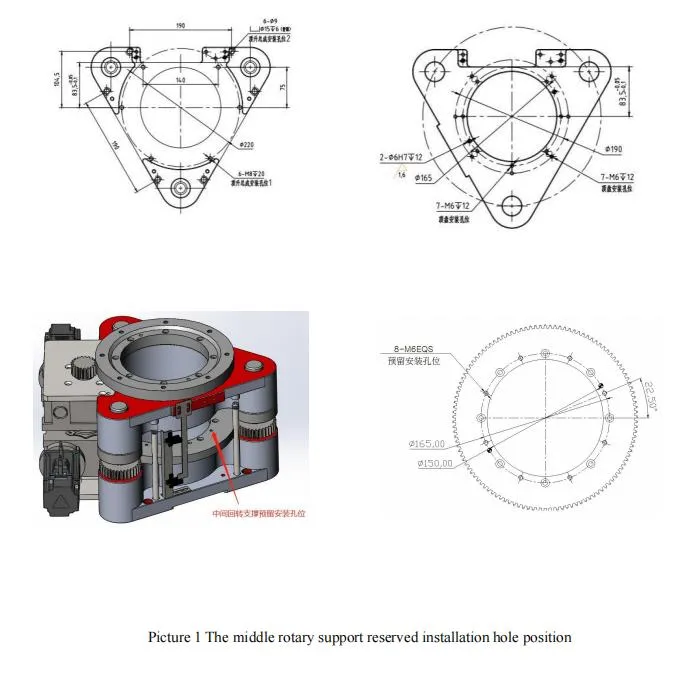

[3]. There is a cylindrical space of φ150 in the middle of the jacking assembly, and 8 M6 threaded holes are reserved in the middle of the slewing support. If you want to add QR code camera or other sensors, you can use the bracket to fix them on the 8 M6 threaded holes reserved for the rotary support, and the specific dimension is shown as picture 1.

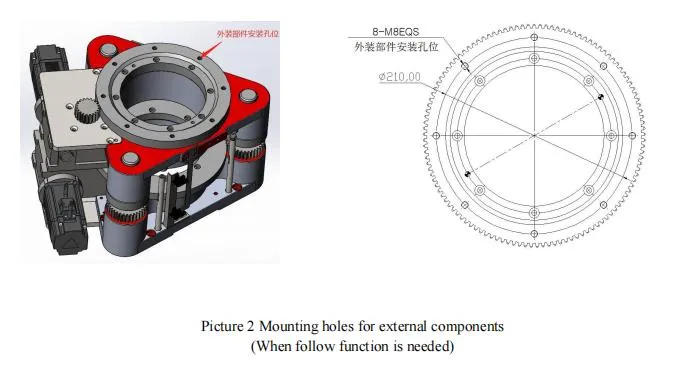

[4]. A set of drive assembly and a rotary support shall be added to the top plate, and the external parts shall be installed on the rotary support, which the size of the hole is shown as picture 2.

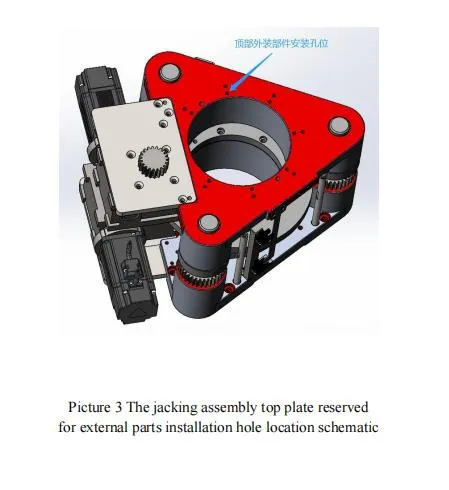

[5]. Picture 3 shows the holes of the jacking assembly top plate reserved for external parts, there are 2 sets of M6 threaded holes, and according to the application scenario to choose the specific size.
3. Company Profile
Shenzhen WellWit Robotics Co., Ltd was established in Shenzhen in March 2015, our company focuses on research and development of mobile robot. The R&D team consists of members who experienced in field of robot, embedded hardware, software, algorithms, artificial intelligence, etc.
Currently, products for sale including moving robot, sorting robot, Auto-forklift, etc. Navigation method we provide including QR code navigation, LiDAR SLAM navigation, Visual SLAM Navigation, RTK navigation.
We focus on providing custom logistic robots for the integrators who focus on Intelligent Logistics and Intelligent Factory, and provide AGV&AMR with ODM/OEM service for global clients.
4. Company Certification
5. Cases Show
Specific prices can be discussed in person, we have different configurations, so the prices will be different for different AGV/AMR.
