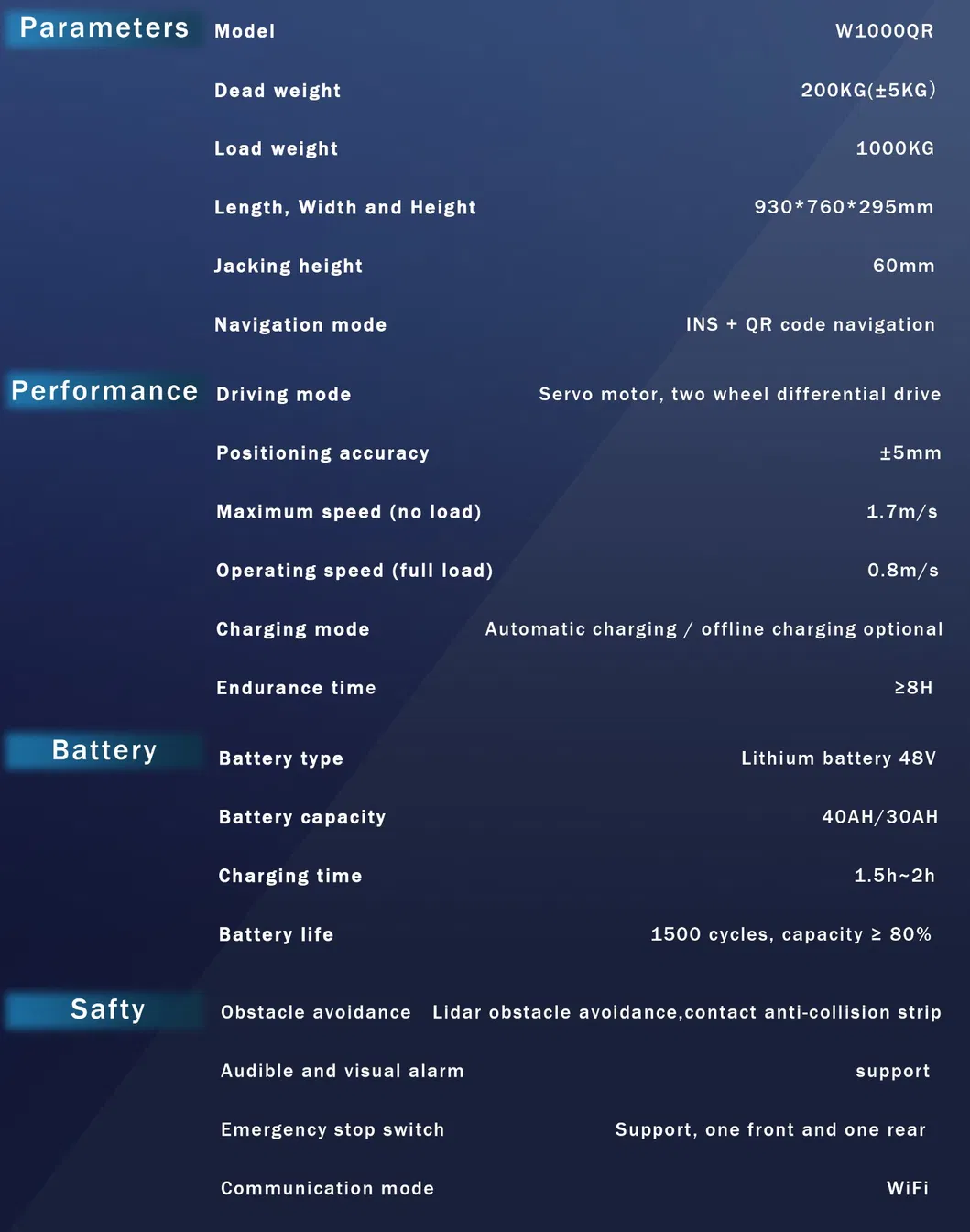

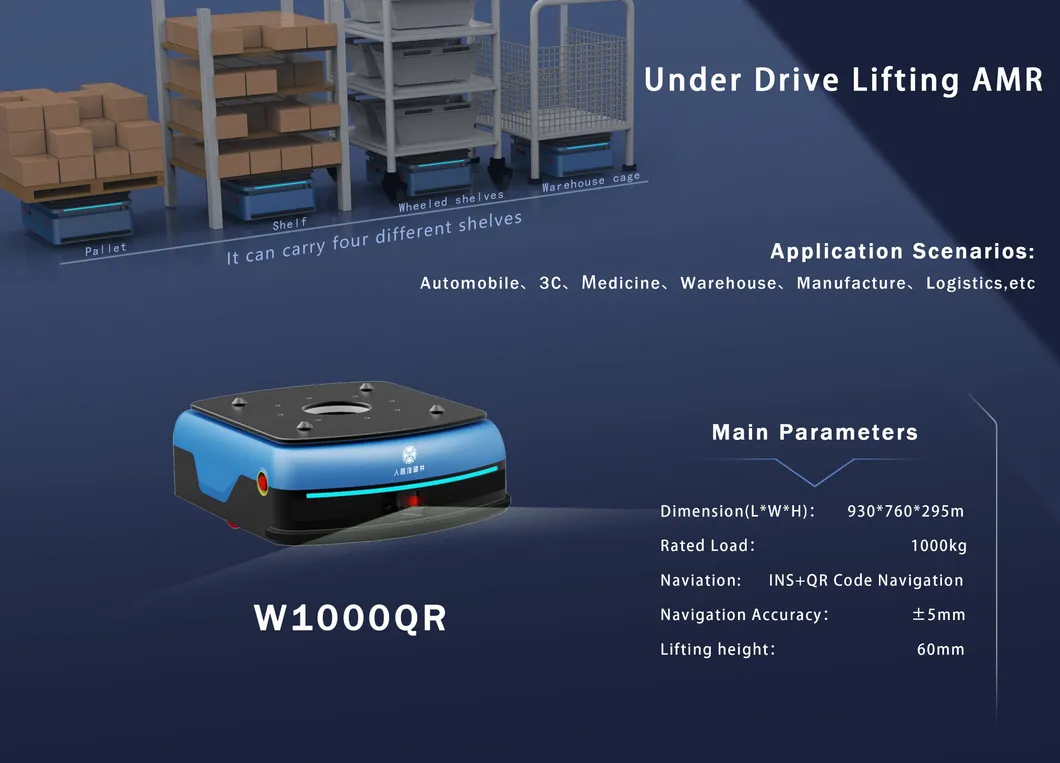

Wellwit 1000kg Capacity Rotating Under Drive Lifting Agv Robot Qr Code Navigation

Origin : Shenzhen

Battery Type : Lithium Battery 48V

Charging Time : 1.5~2h

Trademark : Wellwit

Battery Endurance : ≥8h

Application : Loading, Warehouse, Logistic, 3D, Manufacture

Specification : 924*758*286mm

Navigation : Ins+Qr Code

Positioning Accuracy : ±5mm

Charging Mode(Optional) : Automatic Charging/ Offline Charging

Jacking Height : 60mm

Certification : ISO, CE

Price : US $14,800 / Unit

After-sales Service : One Year

Payload : 1000kg

Warranty : One Year

MOQ : 1 Unit

Model NO. : W1000QR

Condition : New

Obstacle Avoidance : Lidar Obstacle Avoidance, Contact Bumper Strip

Contact Now

Wellwit 1000kg Capacity Rotating Under Drive Lifting Agv Robot Qr Code Navigation

Note:

1. Using QR code navigation, combined with inertial navigation system for positioning and correction, accurate positioning of ± 10 mm can be achieved.
2. The load weight can be up to 1000Kg and most of the goods can be transported by Lifting, rotating.
3. The equipment adopts the modular design of the whole machine, which makes the assembly and maintenance more convenient.
4. The battery can last for ≥ 8 hours with full load, and the robot can realize automatic charging when low power (set low power threshold according to customer requirements).
5. Cluster scheduling, in the robot control system, you can view the working status, battery energy, location and other information of all robots at the same time, and dispatching all devices through the system.
6. Equipped with lidar obstacle avoidance, front contact anti-collision bar, left and right emergency stop buttons, multiple safety protection to protect equipment and cargo safety.
7. System path planning, realize unmanned operation, staff only need to give instructions through the control terminal.

Shenzhen WellWit Robotics Co., Ltd was established in Shenzhen in March 2015, our company focuses on research and development of mobile robot. The R&D team consists of members who experienced in field of robot, embedded hardware, software, algorithms, artificial intelligence, etc.
Currently, products for sale including moving robot, sorting robot, Auto-forklift, etc. Navigation method we provide including QR code navigation, LiDAR SLAM navigation, Visual SLAM Navigation, RTK navigation.
We focus on providing custom logistic robots for the integrators who focus on Intelligent Logistics and Intelligent Factory, and provide AGV&AMR with ODM/OEM service for global clients.

Wellwit 1000kg Capacity Rotating Under Drive Lifting Agv Robot Qr Code Navigation

Wellwit 1000kg Capacity Rotating Under Drive Lifting Agv Robot Qr Code Navigation

Wellwit 1000kg Capacity Rotating Under Drive Lifting Agv Robot Qr Code Navigation Images
